| Input | 1φ 90–265 Vac · 3φ 280–465 Vac |
|---|---|
| Output | 0–1000 Vdc · 0–1000 A |
| Power range | 50 W – 500 kW |
| Regulation | Constant current / constant voltage |
| THD | Below 2 % |

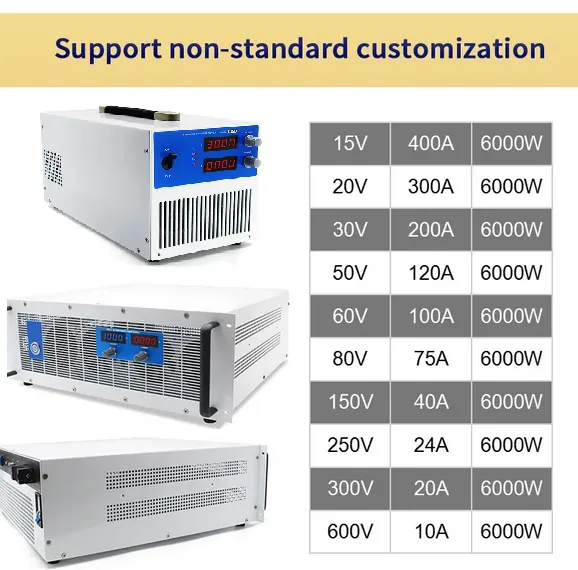

| 6 kW variants | 15 V/400 A · 30 V/200 A · 60 V/100 A · 150 V/40 A · 300 V/20 A · 600 V/10 A |
| Reference build | AC 220 V → DC 100 V / 100 A rack |
Power Conversion

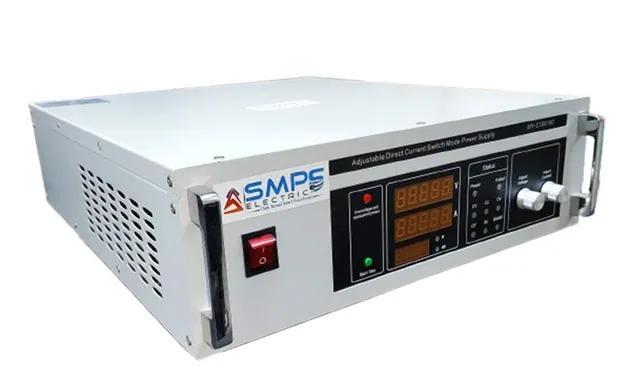

Industrial DC Supply
Constant-current, constant-voltage industrial SMPS built for laboratories, plating lines and motor test benches — with harmonic distortion held under 2 % so the load sees clean DC, not a compromise.
Applications
LaboratoryElectroplatingMotor testR&DIndustrial DC
